High operational efficiencyand dust removal without filters
Low maintenancedue to absence of moving parts
Custom designstailored to specific airflow and dust load
Durable constructionfor long-term industrial use
Technical Specification
| Material of Construction | Premium Mild Steel |
|---|---|
| Design Type | Multi Cyclone Dust Collector |
| Airflow Capacity | 500–50,000+ m³/hr (Custom) |
| Dust Removal Efficiency | Up to 99% (depends on dust particle size) |
| Temperature Range | Up to 250°C (or per project requirement) |
| Configuration | Multiple parallel cyclones |
| Accessories | Support Frame, Hopper, Discharge Valve |
| Finish | Primer + Industrial Paint / Anti-Corrosion Coating |

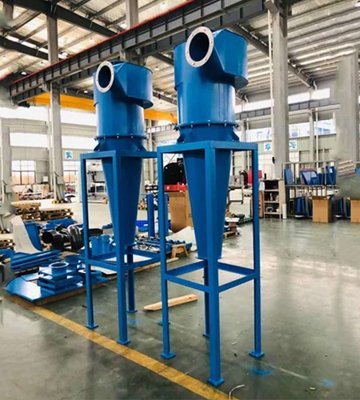

What is a multi cyclone dust collector?
A multi cyclone dust collector uses several cylindrical or conical cyclone tubes in parallel to separate dust particles from contaminated air via centrifugal force before releasing cleaned air
How is it different from a single cyclone?
Multi cyclone systems increase dust removal efficiency and handle larger airflow volumes by splitting the stream into multiple smaller cyclones working simultaneously.
Can it handle high-temperature gases?
Yes. With appropriate material and coatings, these units can be designed for high-temperature applications such as boiler flue gas cleaning.
Do multi cyclone collectors require filters?
No. Multi cyclone systems separate particles using centrifugal action, eliminating the need for filter media and reducing maintenance.
Can the system be customized?
Yes. Capacity, cyclone count, inlet/outlet dimensions, and support structures can all be tailored to your operation.
